SMGW-Net Cable New
New
- Standard net cable 230 V
- For the electrical supply of a smart meter gateway via a base meter
- Standard cable with 90° connector on the gateway
| Mechanical Data | ||
|---|---|---|
| Wire size | 0.75 mm² | |
| Temperature Range | -40 °C - +75 °C | |
| Electrical Data | ||
| Rated voltage | min 300 / 500 V (H05) | |
| Impulse rated voltage | min 2.5 kV | |
| Compliances | ||
| RoHS compliant | yes (RoHS-konform - 2011/65/EU) | |
| CE compliant | yes | |
| WEEE compliant | yes | |
| Colors | ||
| Sheath color | ||
| BLACK, RAL 9011 | ||
| Wire color | ||
| BLUE, RAL 5015 | ||
| BLACK/BROWN, RAL 9011 | 8024 |  |
| Order Data Cable length 33.0 mm | ||||
|---|---|---|---|---|
| Order number | PU | |||
| | 5994115100 F | 200 | ||
| Order Data Cable length 80.0 mm | ||||
|---|---|---|---|---|
| Order number | PU | |||
| | 5994115101 E | 100 | ||
| Order Data Cable length 110.0 mm | ||||
|---|---|---|---|---|
| Order number | PU | |||
| | 5994115102 E | 100 | ||
Please select one of the above listed cable length before you order for quotation.

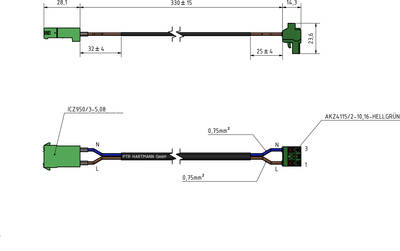

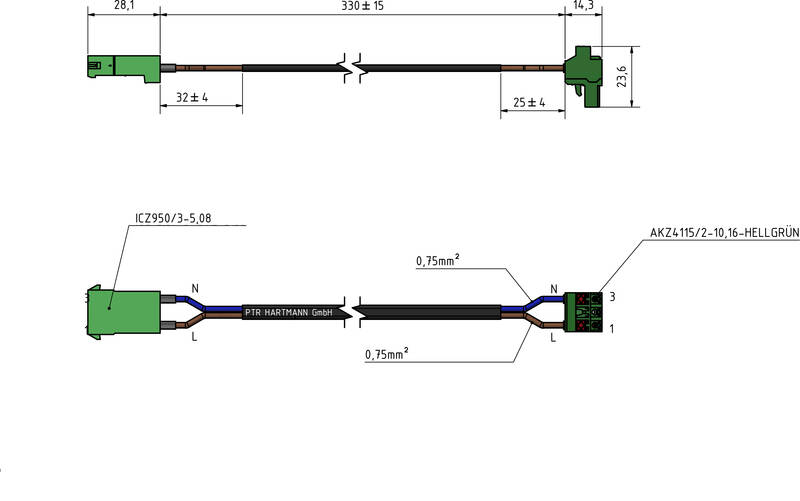

to Inquiry FormJust click on the image and it will open an enlarged view.
