| Dimensions | | |
| Width | 6.0 mm | |
| Length | 32.0 mm | |
| Height TS35 x 15 | 34.0 mm | |
| Connections | | |
| Special connection | Faston 0,8 x 2,8 mm | |
| Insulating Material | | |
| Material | PA 6.6 | |
| Flammability class | UL 94 V-2 | |
| Temperature | | |
| Working temperature | -40 - 105 °C | |
| General | |

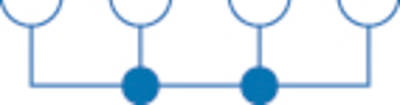

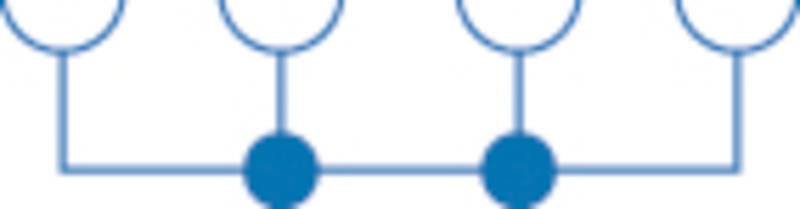

| Cross connection channels | 1 |
Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
| FSRN2.5-2F/2F-T15-BEIGE | 41032.2 | 100 |
| Colours | Order Data | | |
| BEIGE, similar RAL 1019 | 41032.2 | | |
| Article Designation | Order Data | PU |
| End Plate AP/FF1/15 | 492421.2 | 20 |
| Partition Plates TW1.5-4 | 492071.0 | 50 |
| Socket Plug STB8.5/2.3 | 492075.0 | 50 |
| Test connectors PS2.3 | 492007.0 | 20 |
| Insulating Sleeve IH2.8 | 492435.0 | 200 |
| Cross-Connection uninsulated Q2 | 492019.0 | 50 |
| Cross-Connection uninsulated Q3 | 492020.0 | 50 |
| Cross-Connection uninsulated Q4 | 492021.0 | 20 |
| Endstützen ES15 | 492074.2 | 50 |
| Quick Labelling PSB6/50 | 494702.7 | 500 |
| Ratings | | | | | | |  |
| Rated voltage | | | | | | | 400 V |
| Rated current | | | | | | | 6 A |
| Rated wire size | | | | | | | 1.0 mm² |
| Rated impulse voltage | | | | | | | 6 kV |
| Pollution degree | | | | | | | 3 |
