| Wire sizes | | |
| Solid | 0.2 mm² - 4.0 mm² | |
| Stranded | 0.2 mm² - 4.0 mm² | |
| Stranded with ferrule | 0.2 mm² - 4.0 mm² | |
| Clamping range | 0.2 mm² - 4.0 mm² | |
| Dimensions | | |
| Stripped length | 9.0 mm | |
| Width | 6.0 mm | |
| Length | 60.2 mm | |
| Height TS35 x 7.5 | 61.0 mm | |
| Height TS32 | 65.5 mm | |
| Connections | | |
| Screw thread | M3 | |
| Screw head | Slot | |
| Torque | 0.5 - 1.0 Nm | |
| Plug gauge EN 60947-1 | A4 | |
| Insulating Material | | |
| Material | PA 6.6 | |
| Flammability class | UL 94 V-2 | |
| Temperature | | |
| Working temperature | -40 - 105 °C | |
| General | |
| Cross connection channels | 2 |
| Test pick off | 1 |
| Electronic components | |
| Rated voltage AC | 400 V |
| Rated current | 10 A |

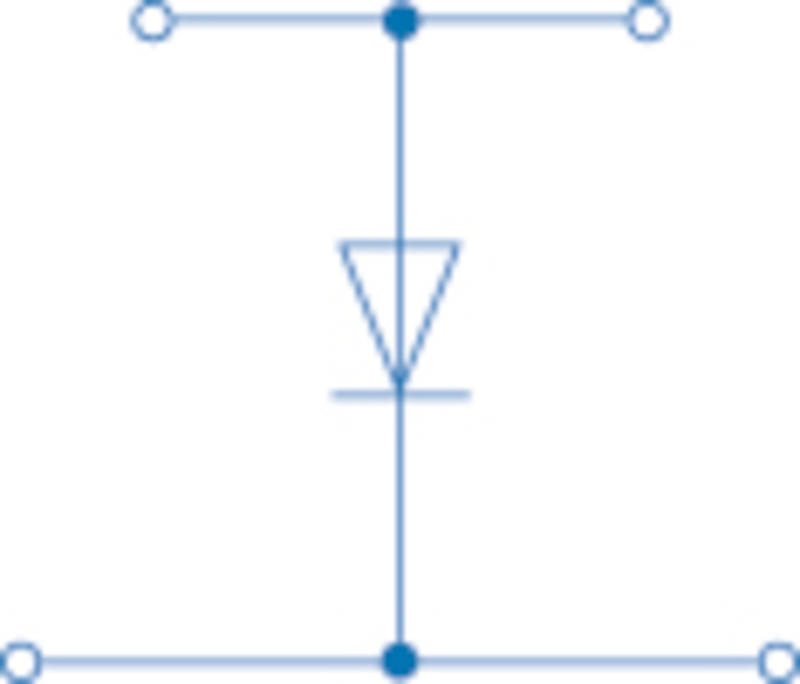

| Diodes | |
| Diode type | 1N4007 |
| Diode reverse voltage | 1.000 V |
| Diode current | 1 A |
| Dimensions | |
| Rated wire size | 4.0 mm² |
| AWG rated wire size | AWG 22-12 |
Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
| SRD4-EL=D1-BEIGE | 41046.2 | 100 |
| SRD4-EL=D1-BLUE | 41046.5 | 100 |
| Colours | Order Data | | |
| BEIGE, similar RAL 1019 | 41046.2 | | |
| BLUE, similar RAL 5015 | 41046.5 | | |
| Article Designation | Order Data | PU |
| End Plate AP4 | 492101.2 | 20 |
| Insulation Plates TRS3 | 492566.2 | 100 |
| Socket Plug STB8.5/2.3 | 492075.0 | 50 |
| Test connectors PS2.3 | 492007.0 | 20 |
| Cross-Connection uninsulated Q2 | 492087.0 | 50 |
| Cross-Connection uninsulated Q3 | 492088.0 | 50 |
| Cross-Connection uninsulated Q4 | 492089.0 | 20 |
| Cross-Connection uninsulated Q10 | 492090.0 | 10 |
| Endstützen ES35/K/ST | 492828.0 | 50 |
| Test Adapter TAD6/1/S | 492822.0 | 10 |
| Quick Labelling PSB6/50 | 494702.7 | 500 |
| Ratings | | | | | | | |
| Rated voltage | | | | | | | |
| Rated current | | | | | | | |
| Rated wire size | | | | | | | |
