SRDI2.5-PE-L-L
- Transit / Protective Conductor Terminal

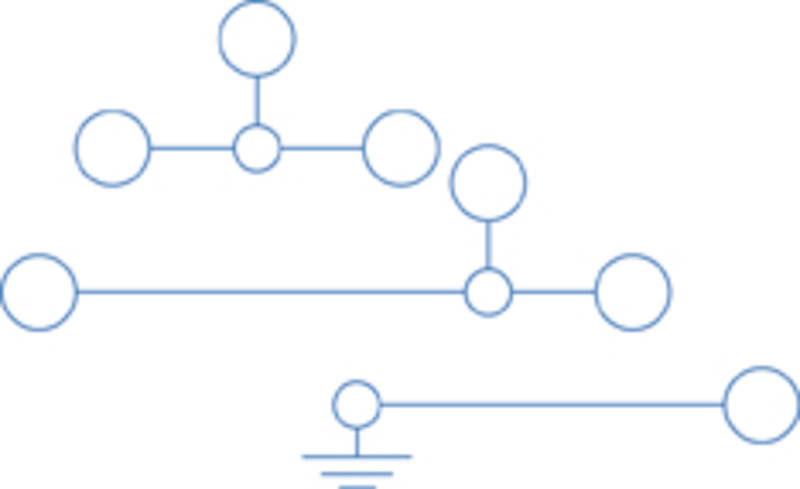

- 2x2+1 Connections
| Wire sizes | ||
|---|---|---|
| Solid | 0.2 mm² - 4.0 mm² | |
| Stranded | 0.2 mm² - 4.0 mm² | |
| Stranded with ferrule | 0.2 mm² - 2.5 mm² | |
| Clamping range | 0.2 mm² - 4.0 mm² |
| Dimensions | ||
|---|---|---|
| Stripped length | 8.0 mm | |
| Width | 6.0 mm | |
| Length | 90.5 mm | |
| Height TS35 x 7.5 | 53.0 mm |
| Connections | ||
|---|---|---|
| Screw thread | M2.5 | |
| Screw head | Slot | |
| Torque | 0.4 - 0.8 Nm | |
| Plug gauge EN 60947-1 | A3 |
| Insulating Material | ||
|---|---|---|
| Material | PA 6.6 | |
| Flammability class | UL 94 V-2 |
| Temperature | ||
|---|---|---|
| Working temperature | -40 - 105 °C |
| General | |
|---|---|
| Cross connection channels | 2 |
Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
|---|---|---|
| SRDI2.5-PE-L-L-BEIGE | 41419.2 | 50 |
| Colours | Order Data | ||
|---|---|---|---|
| BEIGE, similar RAL 1019 | 41419.2 |
| Article Designation | Order Data | PU |
|---|---|---|
| End Plate AP2.5D | 492831.2 | 20 |
| Insulation Plates TRS3 | 492566.2 | 100 |
| Cross-Connection uninsulated Q2 | 492832.0 | 50 |
| Cross-Connection uninsulated Q3 | 492833.0 | 50 |
| Cross-Connection uninsulated Q4 | 492834.0 | 20 |
| Cross-Connection uninsulated Q10 | 492835.0 | 10 |
| Endstützen ES35/K/ST | 492828.0 | 50 |
| Quick Labelling PSB6/50 | 494702.7 | 500 |
| Ratings |  |  |  | ||||
|---|---|---|---|---|---|---|---|
| Rated voltage | 300 V | 300 V | 400/250 V | ||||
| Rated current | 15 A | 15 A | 24 A | ||||
| Rated wire size | AWG 22-14 | AWG 22-14 | 2.5 mm² | ||||
| Rated impulse voltage | 6 kV | ||||||
| Pollution degree | 3 |
