ZR2.5-DRL-EL=LED2(RD)24VDC
- Through Terminal Block
- 2x2 Connections

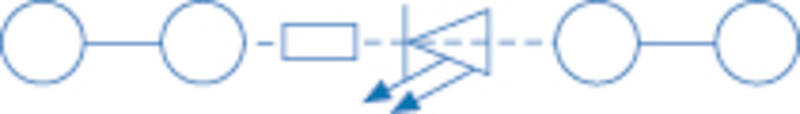

- With electronic components
| Wire sizes | ||
|---|---|---|
| Solid | 0.5 mm² - 4.0 mm² | |
| Stranded | 0.5 mm² - 4.0 mm² | |
| Stranded with ferrule | 0.5 mm² - 2.5 mm² |
| Dimensions | ||
|---|---|---|
| Width | 5.1 mm | |
| Length | 83.6 mm | |
| Height TS35 x 7.5 | 39.0 mm |
| Connections | ||
|---|---|---|
| Plug gauge EN 60947-1 | A3 |
| Insulating Material | ||
|---|---|---|
| Material | PA 6.6 | |
| Flammability class | UL 94 V-0 |
| Temperature | ||
|---|---|---|
| Working temperature | -40 - 120 °C |
| General | |
|---|---|
| Cross connection channels | 1 |
| Test pick off | 2 |
| Diodes | |
|---|---|
| Diode current | < 5 m A |
Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
|---|---|---|
| ZR2.5-DRL-EL=LED2(RD)24VDC-BE | 43543.2 | 100 |
| Colours | Order Data | ||
|---|---|---|---|
| BEIGE, similar RAL 1019 | 43543.2 |
| Article Designation | Order Data | PU |
|---|---|---|
| End Plate ZAP2.5/4A | 493702.2 | 50 |
| Four-Way Covers ZAD2.5/4/B | 493706.0 | 20 |
| Endstützen ZES35 | 493748.2 | 50 |
| Test Adapter ZTA2.5 | 493740.2 | 10 |
| Quick Labelling PSB5/50 | 494600.7 | 500 |
| Ratings |  |  |  | ||||
|---|---|---|---|---|---|---|---|
| Rated voltage | 24 V | ||||||
| Rated current | < 5 mA A | ||||||
| Rated wire size | AWG 20-12 | AWG 20-12 | 2.5 mm² | ||||
| Rated impulse voltage | 8 kV | ||||||
| Pollution degree | 3 |
