ZRID2.5-PE-L-N
- Transit / Protective Conductor Terminal

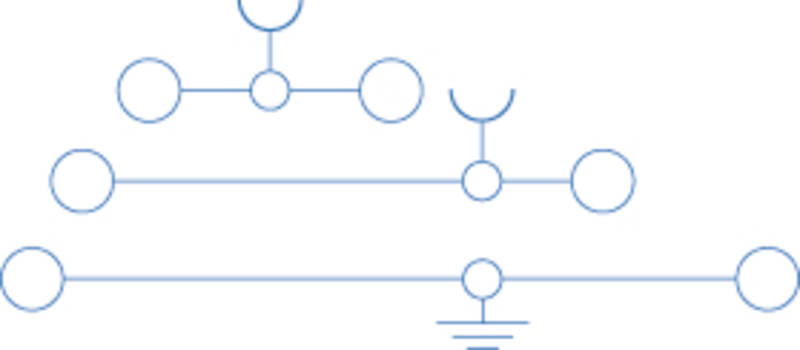

- 3x2 Connections
| Wire sizes | ||
|---|---|---|
| Solid | 0.5 mm² - 4.0 mm² | |
| Stranded | 0.5 mm² - 4.0 mm² | |
| Stranded with ferrule | 0.5 mm² - 2.5 mm² |
| Dimensions | ||
|---|---|---|
| Width | 5.1 mm | |
| Length | 116.2 mm | |
| Height TS35 x 7.5 | 68.0 mm |
| Connections | ||
|---|---|---|
| Plug gauge EN 60947-1 | A3 |
| Insulating Material | ||
|---|---|---|
| Material | PA 6.6 | |
| Flammability class | UL 94 V-0 |
| Temperature | ||
|---|---|---|
| Working temperature | -40 - 120 °C |
| General | |
|---|---|
| Cross connection channels | 2 |
| Test pick off | 6 |
Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
|---|---|---|
| ZRID2.5-PE-L-N-BEIGE | 43594.2 | 50 |
| Colours | Order Data | ||
|---|---|---|---|
| BEIGE, similar RAL 1019 | 43594.2 |
| Article Designation | Order Data | PU |
|---|---|---|
| End Plate ZAP2.5/ID | 493761.2 | 20 |
| Cross-Connection insulated ZQI2.5/2 | 493710.8 | 50 |
| Cross-Connection insulated ZQI2.5/3 | 493711.8 | 50 |
| Cross-Connection insulated ZQI2.5/4 | 493712.8 | 20 |
| Cross-Connection insulated ZQI2.5/5 | 493713.8 | 20 |
| Cross-Connection insulated ZQI2.5/6 | 493714.8 | 20 |
| Cross-Connection insulated ZQI2.5/7 | 493715.8 | 20 |
| Cross-Connection insulated ZQI2.5/8 | 493716.8 | 10 |
| Cross-Connection insulated ZQI2.5/9 | 493717.8 | 10 |
| Cross-Connection insulated ZQI2.5/10 | 493718.8 | 10 |
| Cross-Connection insulated ZQI2.5/0.5/99 | 493719.8 | 1 |
| Four-Way Covers ZAD2.5/4/B | 493706.0 | 20 |
| Labelling Adapters ZBA3 | 493813.2 | 50 |
| Endstützen ZES35 | 493748.2 | 50 |
| Test Adapter ZTA2.5 | 493740.2 | 10 |
| Quick Labelling PSB5/50 | 494600.7 | 500 |
| Ratings |  |  |  | ||||
|---|---|---|---|---|---|---|---|
| Rated voltage | 300 V | 300 V | |||||
| Rated current | 15 A | 15 A | |||||
| Rated wire size | AWG 20-12 | AWG 20-12 | 2.5 mm² | ||||
| Rated impulse voltage | 6 kV | ||||||
| Pollution degree | 3 |
