| Wire sizes | | |
| Solid | 0.5 mm² - 4.0 mm² | |
| Stranded | 0.5 mm² - 4.0 mm² | |
| Stranded with ferrule | 0.5 mm² - 2.5 mm² | |
| Dimensions | | |
| Width | 5.1 mm | |
| Length | 68.0 mm | |
| Height TS35 x 7.5 | 39.2 mm | |
| Connections | | |
| Plug gauge EN 60947-1 | A3 | |
| Insulating Material | | |
| Material | PA 6.6 | |
| Flammability class | UL 94 V-0 | |
| Temperature | | |
| Working temperature | -40 - 120 °C | |
| General | |
| Cross connection channels | 1 |
| Test pick off | 2 |

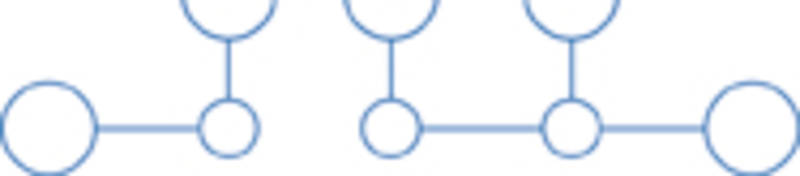

Just click on the image and it will open an enlarged view.
| Article Designation | Article Number | PU |
| ZTR2.5-OT-BEIGE | 43609.2 | 100 |
| ZTR2.5-OT-BLUE | 43609.5 | 100 |
| ZTR2.5-OT-ORANGE | 43609.3 | 100 |
| Colours | Order Data | | |
| BEIGE, similar RAL 1019 | 43609.2 | | |
| BLUE, similar RAL 5015 | 43609.5 | | |
| ORANGE, similar RAL 2003 | 43609.3 | | |
| Article Designation | Order Data | PU |
| End Plate ZAPT2.5/2A | 493796.2 | 20 |
| Cross-Connection insulated ZQI2.5/2 | 493710.8 | 50 |
| Cross-Connection insulated ZQI2.5/3 | 493711.8 | 50 |
| Cross-Connection insulated ZQI2.5/4 | 493712.8 | 20 |
| Cross-Connection insulated ZQI2.5/5 | 493713.8 | 20 |
| Cross-Connection insulated ZQI2.5/6 | 493714.8 | 20 |
| Cross-Connection insulated ZQI2.5/7 | 493715.8 | 20 |
| Cross-Connection insulated ZQI2.5/8 | 493716.8 | 10 |
| Cross-Connection insulated ZQI2.5/9 | 493717.8 | 10 |
| Cross-Connection insulated ZQI2.5/10 | 493718.8 | 10 |
| Cross-Connection insulated ZQI2.5/0.5/99 | 493719.8 | 1 |
| Four-Way Covers ZAD2.5/4/B | 493706.0 | 20 |
| Endstützen ZES35 | 493748.2 | 50 |
| Test Adapter ZTA2.5 | 493740.2 | 10 |
| Disconnect Plug ZDS1/ZTR | 493612.2 | 20 |
| Disconnect Plug ZDS2/ZTR | 493613.2 | 20 |
| Disconnect Plug ZDS3/ZTR | 493614.2 | 20 |
| Disconnect Plug ZDS4/ZTR | 493615.2 | 20 |
| Fuse Plug/- Holder ZS/H0/ZTR | 493635.2 | 20 |
| Fuse Plug/- Holder ZS/H1/ZTR/36 | 493631.2 | 20 |
| Fuse Plug/- Holder ZS/H2/ZTR/70 | 493632.2 | 20 |
| Fuse Plug/- Holder ZS/H3/ZTR/150 | 493633.2 | 20 |
| Fuse Plug/- Holder ZS/H4/ZTR/250 | 493634.2 | 20 |
| Micro-Fuse/G-Fuse Cartridges 6.3x32 imperial 440 V / 500 V / fast-acting SIF6.3x32-10A | 494989.0 | 10 |
| Car Fuse SIC-1A-32V-BK | 494991.0 | 100 |
| Car Fuse SIC-3A-32V-VT | 494993.0 | 100 |
| Car Fuse SIC-4A-32V-PK | 494994.0 | 100 |
| Car Fuse SIC-5A-32V-liBN | 494995.0 | 100 |
| Car Fuse SIC-7.5A-32V-BN | 494996.0 | 100 |
| Car Fuse SIC-10A-32V-RD | 494997.0 | 100 |
| Car Fuse SIC-15A-32V-TQ | 494998.0 | 100 |
| Car Fuse SIC-20A-32V-YE | 494999.0 | 100 |
| Quick Labelling PSB5/50 | 494600.7 | 500 |
| Ratings | | | | | | |  |
| Rated voltage | | | | | | | 400 V |
| Rated current | | | | | | | 18 A |
| Rated wire size | | | | | | | 2.5 mm² |
| Rated impulse voltage | | | | | | | 6 kV |
| Pollution degree | | | | | | | 3 |
